DYNAENTRY-CONTROL SYSTEM

Advanced & Durable Entry-Control Systems



Hostile Vehicle Mitigation



Bollards

Dynasystems bollards act as a roadblock barrier against terrorism and intruders. Our high quality bollards can be installed in places such as:

  • Secured Compounds

  • Government Facilities

  • Defence Force Facilities

  • Stadiums

  • Airports

  • Hospitals

  • Commercial and private property gates

  • Hotels

  • Railways

  • Bridges

Durable and reliable design

Dynasystems Electro Hydraulic Bollards have been designed to operate under difficult weather conditions as well as operating in a high capacity traffic scenario, such as Entry Control Points. Furthermore, the innovative engine design allows for complete recovery of a malfunctioning security bollard within 30 minutes, without the need for specially trained engineers. This is achieved by simply removing the damaged piston and replacing it with a new one.



Architectural variations
Dynasystems Bollards are available in a variety of different architectural finishes such as zinc, metal or painted.  An optional radial  LED set can be supplied to ensure that the bollards are visible in all conditions.




Integral traffic control system
Dynasystems Bollards can be supplied as complete traffic control sets that include an Electric Arm Barrier,  a LED Traffic Light and front and back Loop Detectors, all of which can be provided under the greater perimeter security function.




Security through testing
Dynasystems Bollards are crash tested to the highest category of impact in accordance with methods and practices approved by NATO, US TSWG and UK MoD amongst others. Furthermore the Dynasystems Bollards have undergone impact tests in Russia to certify them against Russian made vehicles, which are widely used in specific High Threat areas such as Iraq and Afghanistan. Dynasystems Bollards can be supplied as K12, K8 and K4 (U.S State Department rating).

Specification


Classic Turnstile



Main features

  • Full height, , electrically controlled substantive steel turnstile, designed for access

  •     control, to secure areas.

  • The turnstile allows single passage for each “release command”

  • An internal heavy duty micro switch locks the rotor automatically after passage.

  • Designed to work with any card reader.

  • Designed for outdoor conditions.  The rugged construction ensures trouble-free performance and durability.








Safety

  • Rotation is smooth, using an integrated hydraulic speed controller, which slows the arms at the end of the rotation, to prevent the arms springing back harming the passing person,  the arms always stop at the same point.

  • This hydraulic speed slower also reduces the metallic noise, and contributes to long term reliability and trouble free operation.

  • Any combination of fail-lock or fail-safe is available.

  • The turnstile is fabricated from galvanized steel, and painted to customer colour.

  • There are 3 rotor sections for each 120 degrees of passage space, thereby allowing greater comfort in use.

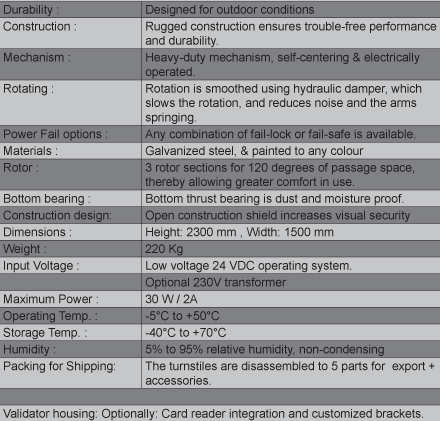

Specification

MODEL: CLASSIC T1



A one way directional electrically controlled turnstile, while the other direction is either always free (open), or always locked – as per customer’s order.

MODEL: CLASSIC T2


A two way directional electrically controlled turnstile. Each direction is controlled by separated command input.

Lockdown Turnstile

Our lock down security turnstile is a unique product that offers a range of answers to options for pedestrian access control and security use.



When a suspect or an unwanted person is recognised by the system a lock-in operation is activated. In this case the turnstile will allow a walk-in process but will lock the person inside by turning only 45 degrees and not completing the full operation. In that case the person is locked until a controlled and supervised release is conducted.


Release can then be activated for both sides of the turnstile by turning the arms or by lifting to allow ease of access and arrest of the suspect.



Sensors and control

  • A main controller supervises the entire range of operations.

  • The engine controller detects when a body is captured between arms for any reason.

  • A stepping sensor monitors the correct position of the body inside the turnstile.

  • Edge sensors ensure a controlled one person at a time operation.

  • End of operation sensors for turning and lifting the arms.





Lock-in operation

  • When a suspect or an unwanted person is recognised by the system a lock-in operation is activated.

  • In this case the turnstile will allow a walk-in process but will lock the person inside by turning only 45degrees and not completing the full operation.

  • In that case the person is locked until a controlled and supervised release is conducted.

  • Release can then be activated for both sides of the turnstile by turning the arms or by lifting to allow ease of access and arrest of the suspect.

Emergency operation

  • The turnstile arms can be totally lifted to create a clear passage in emergency cases. This can be used whenever there is a need for rapid entry or exit.

Additional options

  • The turnstile can work in conjunction with a metal detector, explosives detector or an x-ray detector.

  • When one of the units alerts the turnstile can automatically go into silent lock-in mode.

  • An alert will be sent to the control room automatically.

Optional sensing units


Biometric, face/picture recognition, magnetic cards etc.
Optional automatic lock-in operation controlled by picture\name database.
